Roof patching for trapezoidal sheet metal - Practical tips

Before you start the actual patching, it is necessary to carefully prepare both the materials and the roof structure. Transporting trapezoidal sheet requires special care - the sheets are long and prone to bending. If you do not have mechanical equipment, you will need the assistance of at least two people to safely transfer the material to the roof.

Before starting work, check the geometry of the entire roof structureInspect the slope angle, ridge height and roof diagonals. Small deviations of up to a few centimeters can be corrected during the installation of the roofing, but larger errors require straightening the rafters. Remember that a precisely made truss is the basis for successful lathing.

Before proceeding with the lathing, install all the components that will go under the trapezoidal sheeting. Begin by attaching the gutter belt and gutter hooks in the appropriate places. Next, lay out a vapor-permeable membrane that will protect the structure from moisture penetration.

The membrane should be laid in horizontal strips, starting from the eaves and heading toward the ridge. Each successive strip should be laid with an overlap of 15 cm. Particular attention should be paid to sealing the places of chimney crossings and other elements that intersect the plane of the roof.

Membrane should be laid horizontally.

Correct patch spacing is a key element of the entire process. Manufacturers of trapezoidal sheet metal always provide the recommended spacing between patches in the product's technical documentation. If you do not have access to such information, you can use a standard spacing of 250 to 350 mm. This is the most commonly chosen patch spacing for medium profile sheets.

Remember, however, that for higher-profile sheets, that is, 35-55 mm, the batten spacing can be 400 to 500 mm.

Patch spacing is also affected by the slope of the roof. For a roof with a low pitch, less than 15 degrees, you can arrange the battens a little more densely, that is, reduce the spacing by about 10 cm. For sloping roofs, with a slope of more than 30 degrees, you can increase the spacing by about 5 - 10 cm.

Incorrect patch spacing can lead to serious problems when installing the roofing. Spacing that is too small will cause the sheets to overlap, which can impede water drainage. On the other hand, spacing that is too large can give the impression that the sheeting is too short, and will further weaken the rigidity of the entire structure.

The following is an example of this.

Counter-battens, although they do not carry structural loads, perform an extremely important function in the roof system. Installed along the rafters, they allow the precise placement of cross battens and create additional ventilation space between the insulation and the roofing.

Counterbattens are also used to level out minor irregularities in the structure and protect the roofing film.

The use of counter-battens also makes it possible to compensate for minor irregularities in the structure and protects the roof membrane from damage during the installation of the roofing. The height of counter-battens should be a minimum of 24 mm to ensure adequate airflow in the ventilation space.

Counter-battens should be at least 24 mm high.

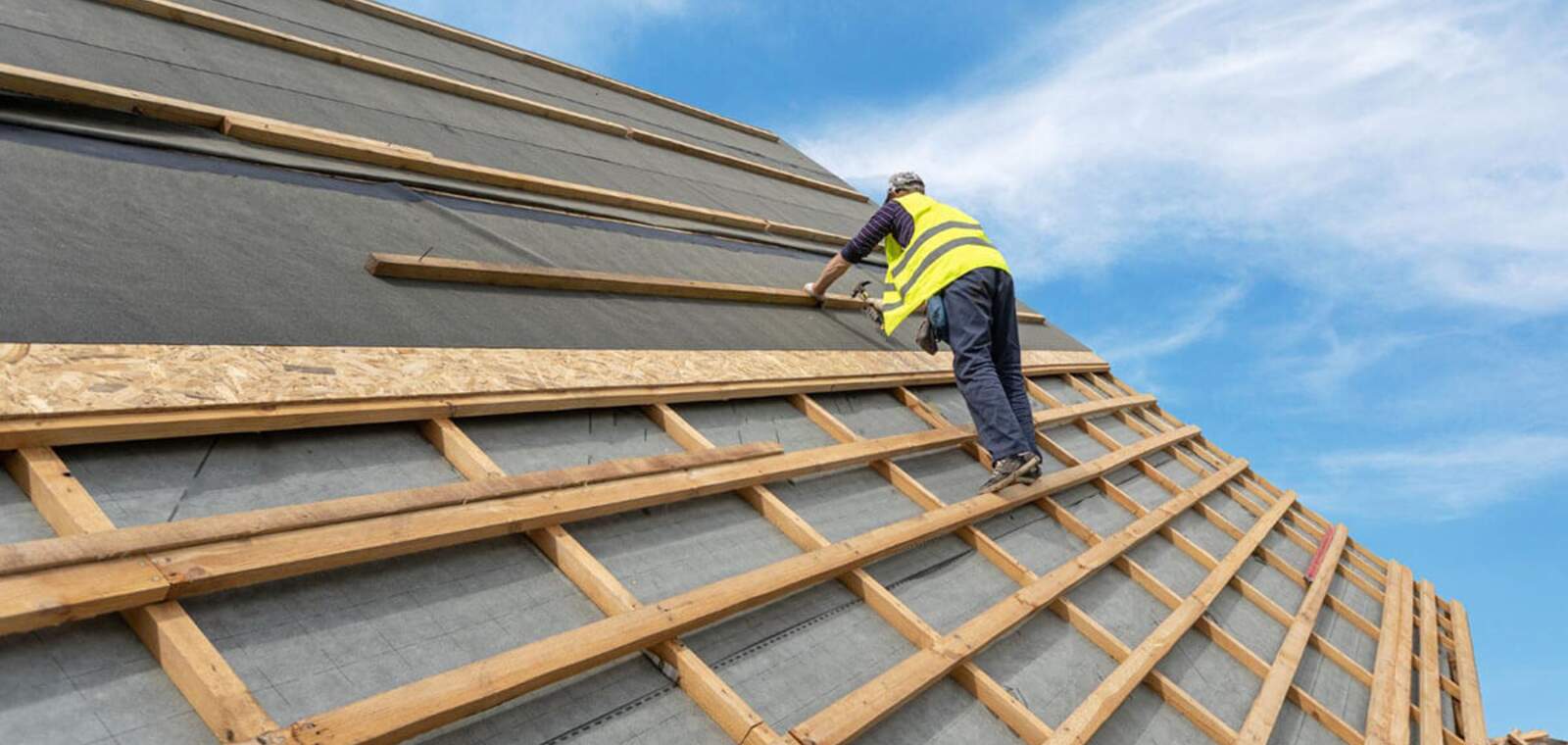

Patches are installed perpendicular to the rafters, always starting from the eaves. The first batten, called the eave batten, should be placed so that its top edge is at a distance corresponding to the width of the first sheet from the edge of the eave. Subsequent battens are placed according to the previously calculated spacing.

Each batten must be accurately leveled and fixed to each rafter or counter-batten with nails or screws of the appropriate length. The length of the fasteners should be at least 2.5 times the thickness of the batten. At the joints of the battens, joints overlapping a minimum of 30 cm on each side of the support should be used.

After patching is completed, conduct a thorough inspection of the entire roof surface. Check the parallelism of the battens with a string stretched between the extremes. All battens should be flush - any bulges or depressions may be visible after the installation of the trapezoidal sheet.

Also inspect the attachment of each batten to the supporting structure. Loose connections can lead to creaking roofing and premature wear. Pay special attention to the places where the battens connect to each other - these connections should always be above the support.

Pay special attention to the places where the battens connect to each other - these connections should always be above the support.

Properly executed lathing is only half the battle. Before you start installing the trapezoidal sheeting, make sure that all the accompanying elements are in place. Check that the vents are properly finished, and that the flashing elements - such as gutter strips and ridge elements - are ready for installation.

Plan the order in which the metal sheets are laid, taking into account the direction of the prevailing winds during the installation period. Laying opposite to the direction of the wind will help avoid problems with blowing out sheets that have not yet been fixed.

Plan the order in which the sheets are laid.

Bathing a roof for trapezoidal sheeting is a precise process that requires accuracy and knowledge of construction principles. Properly made battens and counter-battens are a guarantee of the longevity and tightness of the entire roof system. Remember that saving on the quality of materials or accuracy of workmanship can lead to costly repairs in the future.

If you do not feel confident in performing this work, it is worth using experienced professionals. Professionally done lathing is an investment that will pay off over the years of use of the roof.
