Standing seam panel PHR560 Revolution

Quality and satisfaction… The PHR 560 Revolution standing seam roof panel is a PREMIUM-class product, technologically enhanced and aligned with the latest architectural trends.

It’s perfect, like a high-quality cup of coffee – expertly crafted, it changes your perception of reality.

Calculate product Check where to buy

It’s true that the wide PHR 560 Revolution standing seam panel offers:

Various cut types to suit installation needs
Multiple colors, coating types, and finishes
A cover strip ensuring watertightness
Pre-cut screw holes for easy fastening
A unique snap-lock system

Detailed technical information

Dane	Wymiary
Szerokość krycia	525 mm
Szerokość całkowita	560 mm
Wysokość rąbka	27 mm
Grubość blachy	0,5 mm; 0,7 mm
Min. długość arkusza	500 mm
Max. długość arkusza	11 000 mm
Minimalny spadek dachu	8°

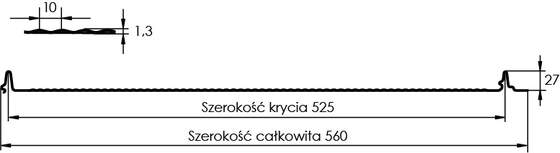

Molet finish

Subtle embossing

Delicate embossing on the surface of the standing seam panel creates a subtle effect. Sunlight enhances the roof’s appearance, changing its look throughout the day.

Knurled finish is a great solution for those who want to combine tradition with modernity.

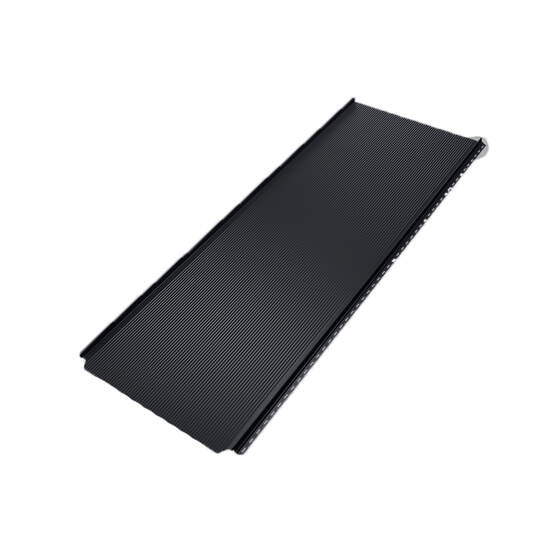

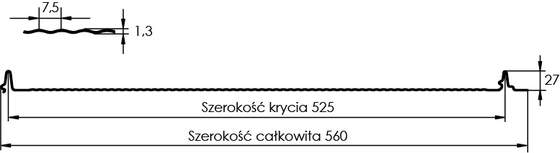

Micro-wave finish

Simple and tasteful finish

Longitudinal embossing along the sheets emphasizes the classic and elegant appearance of the roofing. The micro-wave texture additionally stiffens the sheet, positively affecting the functional properties of the standing seam.

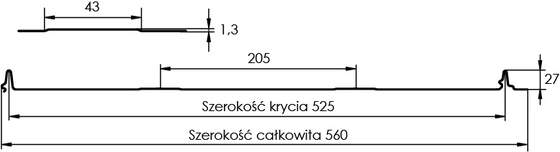

Trapezoid 2 finish

Inspired by tradition

Two trapezoid-shaped embossings add an interesting detail to the roof’s appearance. This finish is popular among users who value classic solutions. The embossing also strengthens the sheet, enhancing its durability.

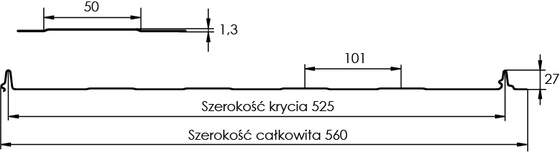

Trapezoid 4 finish

Traditional trapezoid motif

Four trapezoid-shaped embossings on the sheet surface, commonly seen in trapezoidal metal sheets, work perfectly in standing seam panels as well. An additional advantage is that they reinforce the sheets, enhancing their strength.
